Mixing and Blending: The rubber mixing machine is designed to blend and mix rubber compounds, including raw rubber, additives, fillers, and other ingredients. The rubber material is fed into the nip between the two rolls. As the rolls rotate, the rubber is sheared and compressed, promoting the dispersion of additives and ensuring a uniform distribution of ingredients throughout the mixture

1. Variable Roll Speeds: The machine allows for independent control of the roll speeds. This feature enables precise adjustment of the mixing process, such as the shear rate and residence time, to achieve the desired level of blending and dispersion. Different roll speeds can be employed to optimize the mixing efficiency for various types of rubber compounds.

2. Temperature Control: Rubber mixing machines often include provisions for temperature control. The rolls can be heated or cooled to maintain the rubber material at the desired temperature range. Heating the rolls softens the rubber compound, making it more malleable and facilitating the blending process. Cooling the rolls can be useful for heat-sensitive rubber compounds or to prevent excessive heat buildup during extended mixing sessions.

3. Customization Options: we often offer customization options to meet specific production requirements. This may include the choice of roll diameter, surface texture, roll material, and additional features like pneumatic or hydraulic roll adjustments, automated batch feeding systems, or discharge mechanisms.

Mainly composed of roller, frame, bottom plate, distance adjustment device, transmission system, roller temperature adjustment device, safety device, lubrication device, etc.
Features: The roller is made of alloy chilled cast iron. The working surface has high hardness, wear resistance and durability. Steam, cooling water or heat transfer oil can be passed into the inner cavity of the roller to adjust the working temperature of the roller to meet the requirements. Process requirements. Track gauge adjustment can be manual or electric. The roller bearing body can be lubricated by dry oil or thin oil.

The technical parameters for some models rubber Kneader Mixer:

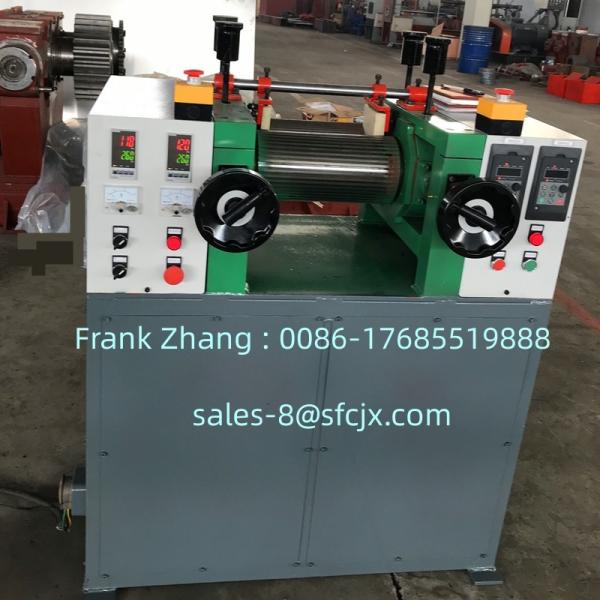

Variable Speed Control 2 Roll Rubber Mixing Machine , 16" Open Rubber Mixing Mill Customization Images
